ACJS-MHDCM - Amphenol

Description: Phone Connectors 1/4"CMPCT Pigybac HOR CHASSIS CONN

Download ACJS-MHDCM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACJS-MHDCM - Amphenol - PCB symbol
click to zoom
PCB Footprints

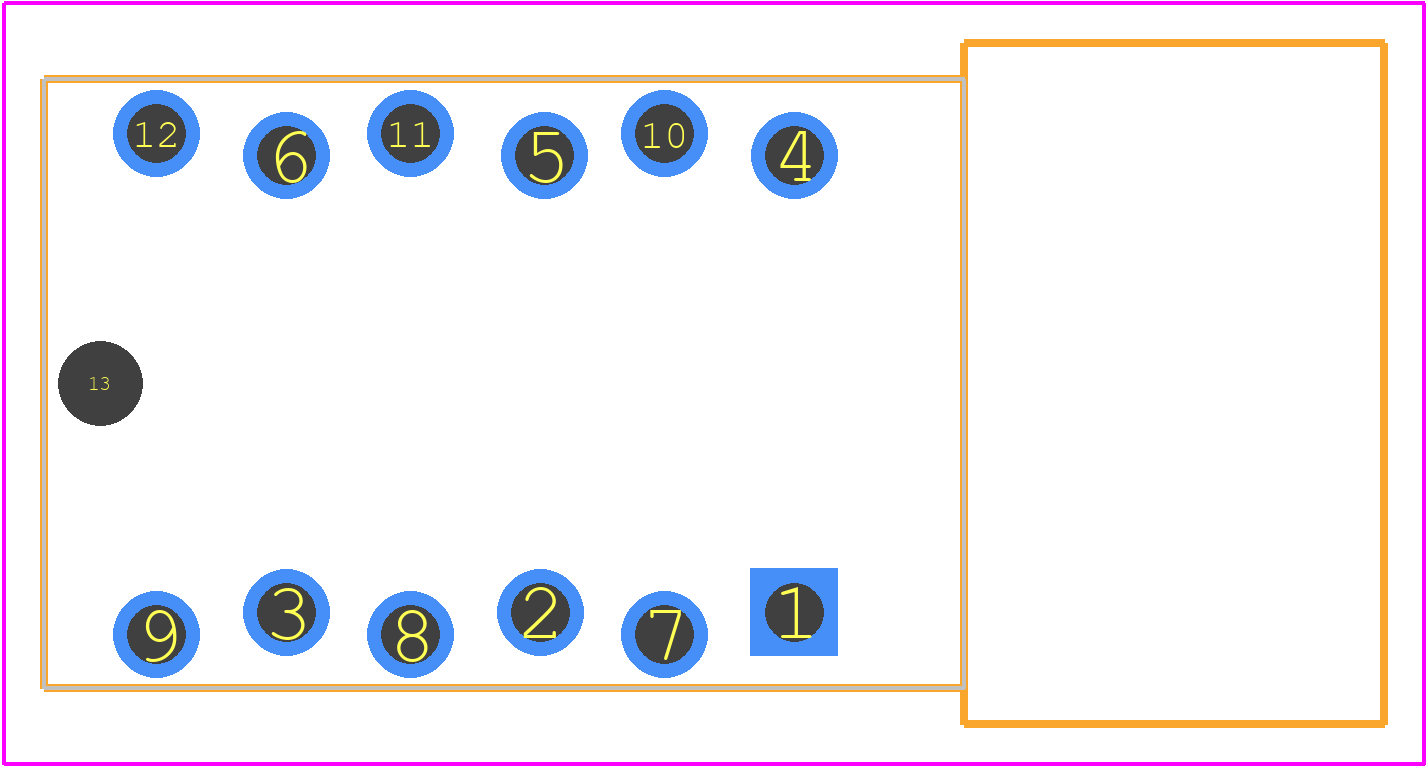

ACJS-MHDCM - Amphenol PCB footprint - Other - Other - ACJS-MHDCM-2
click to zoom
3D Models
ACJS-MHDCM - Amphenol - 3D model - Other - ACJS-MHDCM-2
click to zoom

ACJS-MHDCM Details

  • Manufacturer Part Number:

    ACJS-MHDCM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    6.3 MM AUDIO

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED
