ACJS-PHOP - Amphenol

Description: Phone Audio Connector, Stereo, 6.35mm, 3 Contacts, Jack, Panel Mount, Tin Plated Contacts

Download ACJS-PHOP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ACJS-PHOP - Amphenol - PCB symbol
click to zoom
PCB Footprints

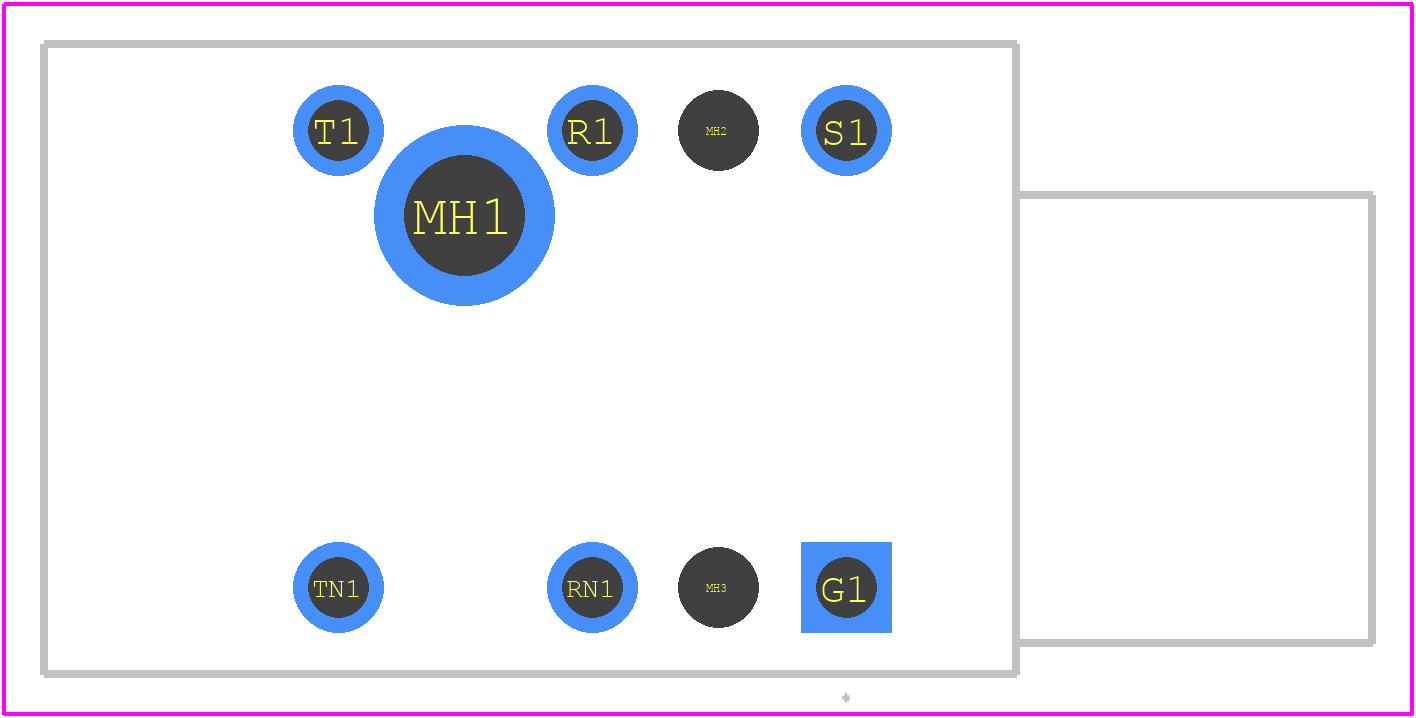

ACJS-PHOP - Amphenol PCB footprint - Other - Other - ACJS-PHOP
click to zoom
3D Models
ACJS-PHOP - Amphenol - 3D model - Other - ACJS-PHOP
click to zoom

ACJS-PHOP Details

  • Manufacturer Part Number:

    ACJS-PHOP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Audio Type:

    STEREO

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.5 inch

  • Body Depth:

    1.307 inch

  • Body Length:

    0.62 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    6.3MM AUDIO

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Insertion Force-Max:

    30 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    10 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.128 inch

  • Termination Type:

    SOLDER

  • Withdrawl Force-Min:

    10 N

ACJS-PHOP Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, ACJS-PHOP connectors are designed to withstand high-vibration environments. They meet the vibration requirements of IEC 61373 Category 2, which means they can operate reliably in applications with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
  • Yes, ACJS-PHOP connectors are suitable for outdoor use. They have a IP67 rating, which means they are protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • While the datasheet specifies AWG 24-16 wire sizes, ACJS-PHOP connectors can accommodate other wire sizes with some limitations. Consult with Amphenol Corporation or a qualified engineer to determine the feasibility of using ACJS-PHOP with different wire sizes.
  • The maximum operating temperature for ACJS-PHOP connectors is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
