The recommended land pattern for ACP3225-501-2P-T000 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
To handle thermal management, ensure good thermal conductivity between the device and the PCB. Use thermal vias, thermal pads, or a heat sink to dissipate heat. Also, consider the thermal resistance of the PCB material and the device's power dissipation rating.
The maximum operating temperature range for ACP3225-501-2P-T000 is -40°C to 125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
ACP3225-501-2P-T000 is designed to withstand moderate vibration. However, for high-vibration environments, it's recommended to use additional mechanical support, such as potting or conformal coating, to ensure the device's reliability and prevent mechanical stress.
Store ACP3225-501-2P-T000 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -10°C to 30°C, and the relative humidity should be below 60%. Avoid exposing the device to extreme temperatures, humidity, or physical stress during storage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACP3225-501-2P-T000 Overview

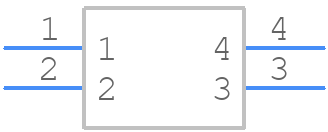

Use the download button to access the ACP3225-501-2P-T000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACP32,
or try a keyword search, such as Data Line Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
