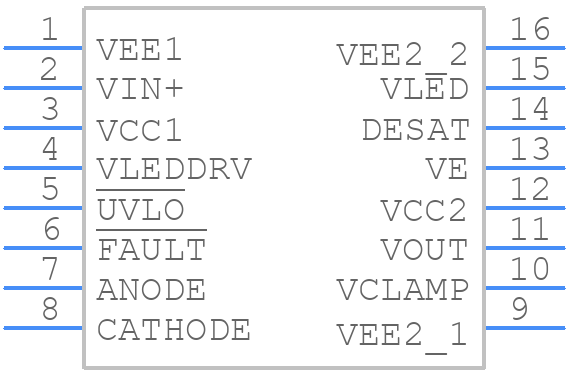

ACPL-336J-500E - Avago Technologies

ACPL-336J-500E Details

• Manufacturer Part Number:

  ACPL-336J-500E

• Part Life Cycle Code:

  Active

• Package Description:

  SOP, SOP16,.4

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Avago Technologies

• YTEOL:

  8.1

• High Side Driver:

  NO

• Interface IC Type:

  BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e3

• Length:

  10.312 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  2.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  3.911 mm

• Supply Current-Max:

  16 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  30 V

• Supply Voltage1-Min:

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.25 µs

• Turn-on Time:

  0.22 µs

• Width:

  7.493 mm
