ACPL-352J-500E - Avago Technologies

Description: Logic Output Opto-couplers 5A Gate Drive Optocoupler,1500V,15V to 30V,5000 VRMS,5.0A,4.5A –40°C to 105°C

Download ACPL-352J-500E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

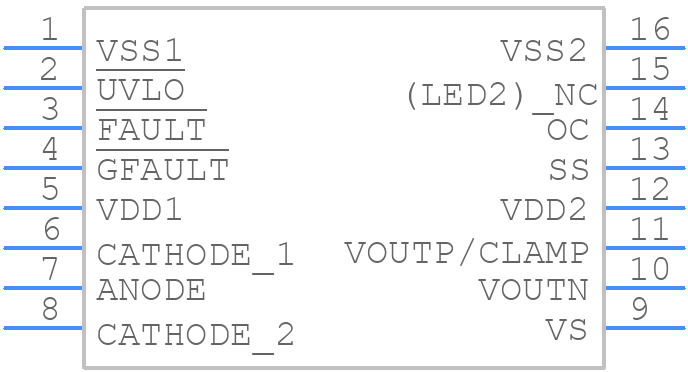

ACPL-352J-500E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACPL-352J-500E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - SO-16_2025
click to zoom
3D Models
ACPL-352J-500E - Avago Technologies - 3D model - Small Outline Packages - SO-16_2025
click to zoom

ACPL-352J-500E Details

  • Manufacturer Part Number:

    ACPL-352J-500E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP, SOP16,.46

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    8.38

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.312 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.46

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3.632 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    0.15 µs

  • Turn-on Time:

    0.15 µs

  • Width:

    7.493 mm

ACPL-352J-500E Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACPL-352J-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device.
  • The ACPL-352J-500E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-protected packaging.
  • While the ACPL-352J-500E is designed for isolated applications, it can be used in non-isolated applications with proper circuit design and layout. However, this may compromise the device's isolation performance and reliability.
  • The maximum allowable voltage imbalance between the input and output sides of the ACPL-352J-500E is ±1 kV. Exceeding this limit may compromise the device's isolation performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACPL-352J-500E Overview

Use the download button to access the ACPL-352J-500E schematic symbol, PCB footprint, and 3D model.
