A good PCB layout for the ACPL-38JT-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the ACPL-38JT-000E in high-temperature environments, it's essential to provide adequate heat sinking, ensure good airflow, and follow the recommended operating temperature range of -40°C to 125°C. Additionally, consider using a thermally conductive material for the PCB and ensure that the device is not exposed to extreme temperatures during storage or handling.
The ACPL-38JT-000E has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-protected packaging. The device can withstand ESD up to 2 kV human body model (HBM) and 150 V machine model (MM).
To troubleshoot issues with the ACPL-38JT-000E, start by verifying the input voltage and current, and checking the output voltage and current. Ensure that the device is properly soldered and that there are no shorts or opens on the PCB. Check the datasheet for recommended operating conditions and ensure that the device is operated within those conditions. If the issue persists, consider consulting the application notes or contacting Broadcom Limited's technical support.
Yes, the ACPL-38JT-000E can be used in redundant or fault-tolerant systems. However, it's essential to ensure that the device is properly configured and that the system is designed to handle the failure of one or more devices. This may involve using multiple devices in parallel, using redundant power supplies, and implementing fault detection and isolation mechanisms.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-38JT-000E Overview

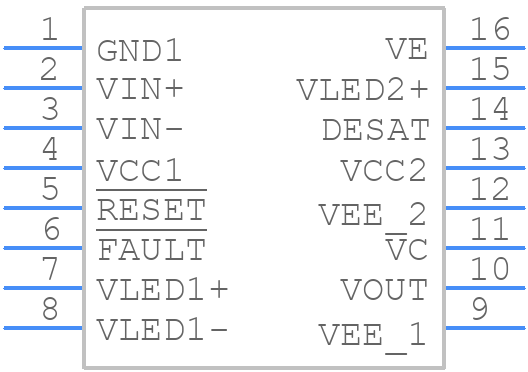

Use the download button to access the ACPL-38JT-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Other Interface ICs
