A good PCB layout for the ACPL-7900-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable operation of the ACPL-7900-500E in high-temperature environments, it's essential to provide adequate heat sinking, ensure good airflow, and follow the recommended operating temperature range of -40°C to 125°C. Additionally, consider using a thermally conductive material for the PCB and ensure that the device is not exposed to extreme temperatures during storage or handling.
The ACPL-7900-500E has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap, ESD mat, and ESD-protected packaging and storage.
Yes, the ACPL-7900-500E can be used in redundant or duplicated system designs. However, it's crucial to ensure that the devices are properly synchronized and that the system is designed to handle the increased power consumption and heat generation.
To troubleshoot issues with the ACPL-7900-500E, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component placement for any potential issues. Use an oscilloscope to analyze the output waveform and ensure that it meets the expected specifications. If the issue persists, consult the datasheet and application notes or contact Broadcom Limited's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-7900-500E Overview

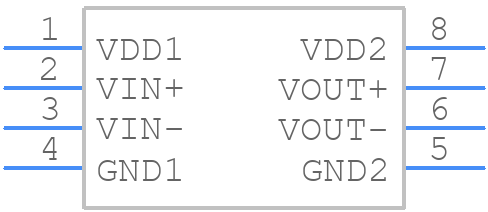

Use the download button to access the ACPL-7900-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Isolation Amplifiers
