A good PCB layout for the ACPL-790A-300E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 125°C, and to ensure good thermal management by providing adequate heat sinking and airflow. Additionally, it's recommended to derate the device's current handling capability at higher temperatures.
The ACPL-790A-300E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding wrist straps, and minimizing the risk of static electricity discharge.
Yes, the ACPL-790A-300E is designed to provide high common-mode transient immunity, making it suitable for applications such as industrial automation, motor control, and power supplies. The device can withstand common-mode transients up to 10 kV/μs.
To troubleshoot issues with the ACPL-790A-300E, start by checking the input voltage and current, as well as the output voltage and current. Verify that the device is properly connected and that the input and output circuits are properly isolated. Check the datasheet for specific troubleshooting guidelines and consider using a oscilloscope to analyze the device's behavior.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-790A-300E Overview

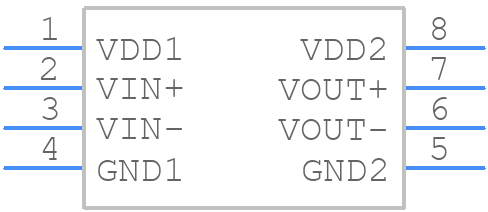

Use the download button to access the ACPL-790A-300E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Isolation Amplifiers
