A good PCB layout for the ACPL-H342-500E involves keeping the input and output circuits separate, using a ground plane to reduce noise, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 0.1uF capacitor between the VCC and GND pins to filter out noise.
To ensure reliable operation of the ACPL-H342-500E in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its recommended temperature range of -40°C to 100°C.
The maximum allowable voltage for the ACPL-H342-500E is 560V peak, which is the maximum voltage that can be applied between the input and output circuits without damaging the device.
To troubleshoot issues with the ACPL-H342-500E, start by verifying that the device is properly powered and that the input and output circuits are properly connected. Check for any signs of physical damage or overheating. Use an oscilloscope to verify that the input and output signals are correct, and check the device's temperature to ensure it's within the recommended range.
The ACPL-H342-500E is a high-reliability device, but it's essential to follow proper safety design practices and adhere to relevant safety standards, such as IEC 61508 or ISO 26262, when using the device in a safety-critical application. Additionally, it's recommended to consult with a qualified safety expert to ensure that the device is used in a way that meets the required safety integrity level.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-H342-500E Overview

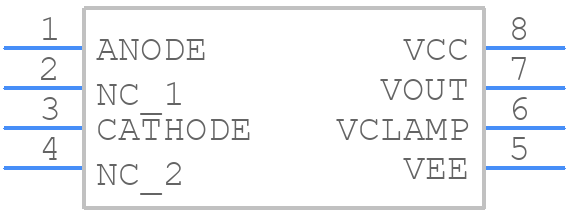

Use the download button to access the ACPL-H342-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as MOSFET Drivers
