A good PCB layout for the ACPL-K376-500E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a shielded cable for the input signal and to keep the device away from high-voltage or high-current circuits.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 100°C, and to ensure good thermal management by providing adequate heat sinking and airflow. Additionally, it's recommended to derate the device's current rating at higher temperatures.
The recommended input signal amplitude for the ACPL-K376-500E is 10-20 mA, and the recommended frequency range is 10 kHz to 100 kHz. However, the device can operate with input frequencies up to 500 kHz, but with reduced sensitivity.
To troubleshoot issues with the ACPL-K376-500E, start by checking the input signal amplitude and frequency, and ensure that the device is properly powered and grounded. Check for any signs of overheating, and verify that the output load is within the recommended range. If the issue persists, try replacing the device or consulting the datasheet and application notes for further guidance.
Yes, the ACPL-K376-500E can be used in safety-critical applications, and it meets the requirements of various safety standards, including IEC 61010-1, IEC 61508, and UL 508. However, it's essential to consult the datasheet and application notes for specific guidance on using the device in safety-critical applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-K376-500E Overview

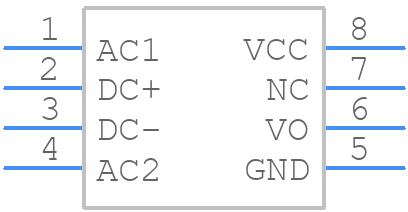

Use the download button to access the ACPL-K376-500E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Other Signal Circuits
