ACS102-6T1-TR - STMicroelectronics

Description: Transient protected AC switch (ACS™)

Download ACS102-6T1-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

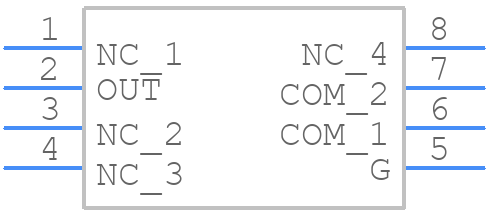

ACS102-6T1-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ACS102-6T1-TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 Mechanical data-
click to zoom
3D Models
ACS102-6T1-TR - STMicroelectronics - 3D model - Small Outline Packages - SO-8 Mechanical data-
click to zoom

ACS102-6T1-TR Details

  • Manufacturer Part Number:

    ACS102-6T1-TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Configuration:

    SINGLE WITH BUILT-IN TRIGGER ELEMENT IN SERIES WITH GATE

  • DC Gate Trigger Current-Max:

    5 mA

  • DC Gate Trigger Voltage-Max:

    0.9 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-Repetitive Pk On-state Cur:

    7.6 A

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • On-state Current-Max:

    200 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RMS On-state Current-Max:

    0.2 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Trigger Device Type:

    TRIAC

ACS102-6T1-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACS102-6T1-TR involves keeping the current sense lines as short as possible, using a ground plane to reduce noise, and placing the device close to the current-carrying conductor to minimize the loop area.
  • To ensure accurate current measurement, ensure the device is properly calibrated, the current sense lines are properly connected, and the device is operated within its specified temperature range.
  • The maximum allowable current for the ACS102-6T1-TR is 6A, as specified in the datasheet. Exceeding this current may damage the device.
  • The ACS102-6T1-TR is rated for operation up to 150°C, but its accuracy and reliability may degrade at high temperatures. Consult the datasheet for specific temperature-related specifications.
  • The ACS102-6T1-TR outputs an analog voltage proportional to the sensed current. You can interface it with a microcontroller by connecting the output to an ADC input and using the microcontroller's ADC to convert the voltage to a digital value.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS102-6T1-TR Overview

Use the download button to access the ACS102-6T1-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS10, or try a keyword search, such as TRIACs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
