ACS102-6T1 - STMicroelectronics

Description: TRIAC Alternistor - Snubberless 600 V 200 mA Surface Mount 8-SOIC

Download ACS102-6T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

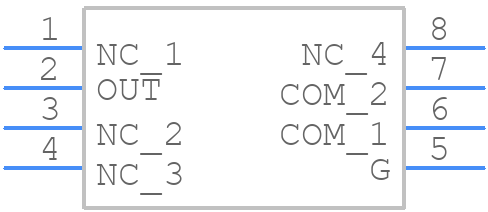

ACS102-6T1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ACS102-6T1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_2025-1.1
click to zoom
3D Models
ACS102-6T1 - STMicroelectronics - 3D model - Small Outline Packages - SO-8_2025-1.1
click to zoom

ACS102-6T1 Details

  • Manufacturer Part Number:

    ACS102-6T1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Configuration:

    SINGLE WITH BUILT-IN TRIGGER ELEMENT IN SERIES WITH GATE

  • DC Gate Trigger Current-Max:

    5 mA

  • DC Gate Trigger Voltage-Max:

    0.9 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-Repetitive Pk On-state Cur:

    7.6 A

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • On-state Current-Max:

    200 A

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RMS On-state Current-Max:

    0.2 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Trigger Device Type:

    TRIAC

ACS102-6T1 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ACS102-6T1 does not require calibration, as it is a self-calibrating device. However, it's recommended to follow the application note AN4991, which provides guidelines for optimizing the device's performance and accuracy in specific applications.
  • The ACS102-6T1 is rated for operation from -40°C to 125°C, but the accuracy and linearity of the device may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for specific temperature-related performance characteristics.
  • The ACS102-6T1 is designed for low-frequency current measurement applications up to 100 kHz. For high-frequency applications, it's recommended to consider other devices specifically designed for high-frequency current measurement, such as the ACS370 or ACS724.
  • The ACS102-6T1 has built-in overcurrent protection, but it's still recommended to add external protection circuitry, such as fuses or TVS diodes, to protect the device from overvoltage and overcurrent conditions. Consult the application note AN4992 for guidelines on designing protection circuits.
