ACS302-5T3-TR - STMicroelectronics

Description: ACS302-5T3-TR, Intelligent Power Switch On-Off Static Switching, 0.045A, 600V, 3-channel, 20-Pin, SO-20

Download ACS302-5T3-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

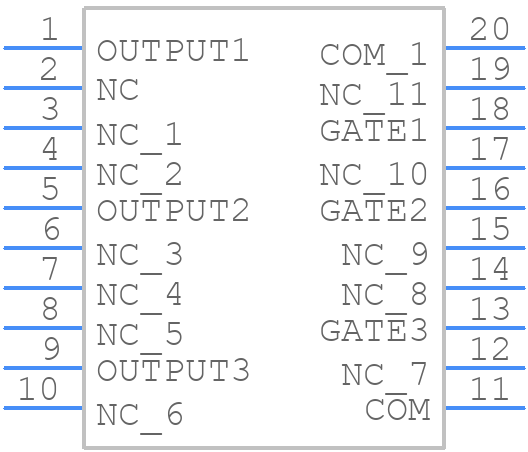

ACS302-5T3-TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ACS302-5T3-TR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO20_2
click to zoom
3D Models
ACS302-5T3-TR - STMicroelectronics - 3D model - Small Outline Packages - SO20_2
click to zoom

ACS302-5T3-TR Details

  • Manufacturer Part Number:

    ACS302-5T3-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Part Package Code:

    SOIC

  • Package Description:

    SO-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.30.00.80

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    2

  • Additional Feature:

    HIGH RELIABILITY, WITH BUILT IN CLAMPING STRUCTURE AND GATE LEVEL SHIFTER DRIVER

  • Configuration:

    COMMON MAIN TERMINAL 1, 3 ELEMENTS

  • JESD-30 Code:

    R-PDSO-G20

  • Number of Elements:

    3

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RMS On-state Current-Max:

    0.4 A

  • Repetitive Peak Off-state Voltage:

    500 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Device Type:

    SNUBBERLESS TRIAC

ACS302-5T3-TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5302, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The ACS302-5T3-TR does not require calibration, as it is a self-calibrating device. However, it's recommended to perform a zero-current calibration by shorting the IP+ and IP- pins together and adjusting the output voltage to zero using an external resistor or potentiometer.
  • The ACS302-5T3-TR is rated for operation from -40°C to 125°C, but the accuracy and linearity of the device may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.
  • The ACS302-5T3-TR is designed for low-frequency current measurement (up to 100 kHz) and may not be suitable for high-frequency applications. For high-frequency current measurement, consider using a different device or consulting with STMicroelectronics' technical support.
  • The ACS302-5T3-TR has built-in overcurrent protection, but it's still recommended to add external protection circuitry, such as fuses or current-limiting resistors, to prevent damage from overcurrent and overvoltage conditions.
