ACS37002LLAATR-015B3 - Allegro Microsystems

Description: 400 kHz, High Accuracy Current Sensor with Pin-Selectable Gains

Download ACS37002LLAATR-015B3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

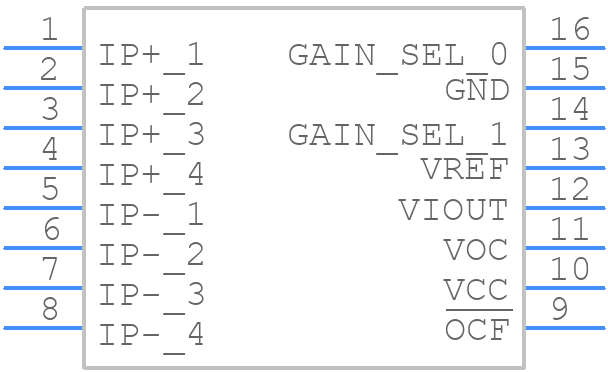

Symbol
ACS37002LLAATR-015B3 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37002LLAATR-015B3 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-Pin SOICW
click to zoom
3D Models
ACS37002LLAATR-015B3 - Allegro Microsystems - 3D model - Small Outline Packages - LA, 16-Pin SOICW
click to zoom

ACS37002LLAATR-015B3 Details

  • Manufacturer Part Number:

    ACS37002LLAATR-015B3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Date Of Intro:

    2020-07-08

  • Manufacturer:

    Allegro MicroSystems LLC

  • Accuracy-Max (%):

    1%

  • Additional Feature:

    BODY HGT_MAX

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.3-3.0V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS37002LLAATR-015B3 Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout guide in their application note AN296065, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy of the current sensor.
  • Calibration of the ACS37002LLAATR-015B3 typically involves adjusting the zero-current output voltage and sensitivity to match the specific requirements of your application. Allegro provides a calibration procedure in their datasheet, which involves applying a known current to the sensor and adjusting the output voltage accordingly.
  • The maximum allowable voltage on the VCC pin of the ACS37002LLAATR-015B3 is 6.5V. Exceeding this voltage may damage the device or affect its performance.
  • The ACS37002LLAATR-015B3 is rated for operation up to 150°C, but its accuracy and performance may degrade at high temperatures. Allegro provides thermal derating curves in their datasheet to help designers estimate the device's performance at elevated temperatures.
  • To protect the ACS37002LLAATR-015B3 from EMI, Allegro recommends using proper shielding, grounding, and filtering techniques. Additionally, the device's output should be filtered and shielded to prevent EMI from affecting the measurement accuracy.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS37002LLAATR-015B3 Overview

Use the download button to access the ACS37002LLAATR-015B3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37, or try a keyword search, such as Other Sensors/Transducers
