Allegro provides a recommended PCB layout in their application note AN296065, which includes guidelines for trace routing, component placement, and shielding to minimize noise and ensure accurate current sensing.
Calibration involves adjusting the zero-current output voltage (VOUT) to match the device's specified offset voltage. Allegro provides a calibration procedure in their datasheet, which involves applying a known current and adjusting the output voltage to match the expected value.
The ACS37002LLAATR-025B5 is rated for operation from -40°C to 125°C, but the device's accuracy and linearity may degrade at extreme temperatures. It's essential to ensure the device operates within the specified temperature range for optimal performance.
Yes, the ACS37002LLAATR-025B5 is designed to withstand vibrations up to 10g peak acceleration, making it suitable for use in industrial and automotive applications. However, it's essential to ensure proper PCB mounting and mechanical design to minimize the effects of vibration on the device's performance.
To minimize EMI effects, Allegro recommends using a shielded cable for the current sensing lines, keeping the device away from high-current carrying traces, and using a ground plane on the PCB. Additionally, using a common-mode filter or a ferrite bead can help reduce EMI noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS37002LLAATR-025B5 Overview

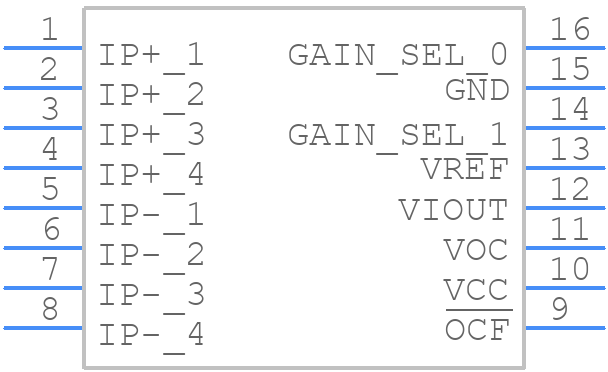

Use the download button to access the ACS37002LLAATR-025B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37,
or try a keyword search, such as Other Sensors/Transducers
