ACS37002LMABTR-050B3 - Allegro Microsystems

Description: 400 kHz, High Accuracy Current Sensor with Pin-Selectable Gains

Download ACS37002LMABTR-050B3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

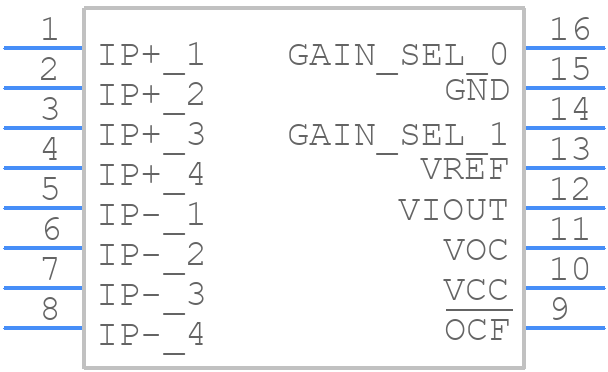

ACS37002LMABTR-050B3 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37002LMABTR-050B3 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA 16-Pin SOICW
click to zoom
3D Models
ACS37002LMABTR-050B3 - Allegro Microsystems - 3D model - Small Outline Packages - MA 16-Pin SOICW
click to zoom

ACS37002LMABTR-050B3 Details

  • Manufacturer Part Number:

    ACS37002LMABTR-050B3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Date Of Intro:

    2020-10-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Accuracy-Max (%):

    1%

  • Additional Feature:

    BODY HGT_MAX

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.3-3.0V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS37002LMABTR-050B3 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference layout in the datasheet and application notes.
  • Calibration involves applying a known current and adjusting the sensitivity and offset registers. Allegro provides a calibration procedure in the datasheet and application notes.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The device is rated for operation up to 150°C. However, thermal derating may be necessary for high-temperature applications. Consult the datasheet and application notes for guidance.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI. Allegro provides EMI mitigation guidelines in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS37002LMABTR-050B3 Overview

Use the download button to access the ACS37002LMABTR-050B3 schematic symbol, PCB footprint, and 3D model.
