ACS37002LMABTR-050B5-M - Allegro Microsystems

Description: Board Mount Current Sensors 400KHZ BW CURRENT SENSOR IC WITH VREF PI

Download ACS37002LMABTR-050B5-M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

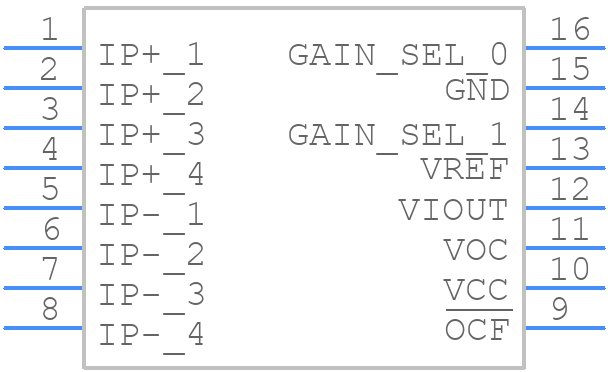

Symbol
ACS37002LMABTR-050B5-M - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37002LMABTR-050B5-M - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - 16 SOICW Package MA, 16-Pin SOICW
click to zoom
3D Models
ACS37002LMABTR-050B5-M - Allegro Microsystems - 3D model - Small Outline Packages - 16 SOICW Package MA, 16-Pin SOICW
click to zoom

ACS37002LMABTR-050B5-M Details

  • Manufacturer Part Number:

    ACS37002LMABTR-050B5-M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Accuracy-Max (%):

    1%

  • Additional Feature:

    BODY HGT_MAX

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

ACS37002LMABTR-050B5-M Frequently Asked Questions (FAQs)

  • Allegro provides a recommended layout guide in their application note AN269041, which includes guidelines for PCB layout, component placement, and thermal management.
  • Calibration is not required for the ACS37002, as it is a factory-calibrated device. However, Allegro recommends following their application note AN223071 for guidelines on how to verify the device's accuracy and perform any necessary adjustments.
  • The maximum allowable voltage on the VCC pin is 5.5V, as per the absolute maximum ratings specified in the datasheet.
  • The ACS37002 is rated for operation up to 150°C, but the device's accuracy and reliability may be affected at high temperatures. Consult the datasheet and Allegro's application notes for more information on high-temperature operation.
  • Allegro recommends following proper PCB layout and shielding techniques, as well as using EMI filters and shielding components to protect the device from EMI. Consult Allegro's application notes and guidelines for EMI protection.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS37002LMABTR-050B5-M Overview

Use the download button to access the ACS37002LMABTR-050B5-M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37, or try a keyword search, such as Other Sensors/Transducers
