Allegro provides a recommended PCB layout in their application note AN296065, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy.
Calibration is not typically required for the ACS37002LMABTR-050U5-M, as it is a pre-calibrated device. However, if you need to adjust the sensitivity or offset, Allegro provides a calibration procedure in their application note AN296065, which involves applying a known magnetic field and measuring the output voltage.
The ACS37002LMABTR-050U5-M has an operating temperature range of -40°C to 150°C, but the device's accuracy and sensitivity may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for more information on temperature-related performance.
The ACS37002LMABTR-050U5-M is designed to be robust and can operate in environments with moderate vibration. However, extreme vibration may affect the device's accuracy and reliability. It's recommended to consult Allegro's application notes and perform thorough testing to ensure the device meets your specific requirements.
To protect the ACS37002LMABTR-050U5-M from EMI, Allegro recommends using proper shielding, grounding, and layout techniques, as well as following the guidelines in their application note AN296065. Additionally, using a low-pass filter or a ferrite bead on the output signal can help reduce EMI effects.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS37002LMABTR-050U5-M Overview

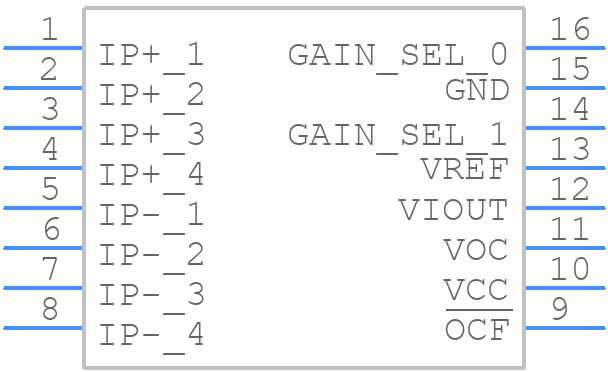

Use the download button to access the ACS37002LMABTR-050U5-M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37,
or try a keyword search, such as Other Sensors/Transducers
