ACS37002LMABTR-050U5 - Allegro Microsystems

Description: 400 kHz, High Accuracy Current Sensor with Pin-Selectable Gains

Download ACS37002LMABTR-050U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

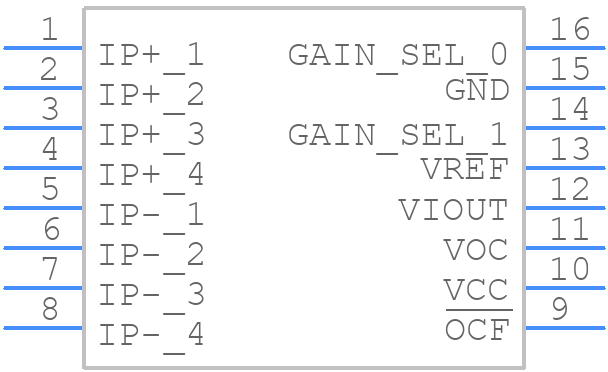

ACS37002LMABTR-050U5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37002LMABTR-050U5 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA 16-Pin SOICW
click to zoom
3D Models
ACS37002LMABTR-050U5 - Allegro Microsystems - 3D model - Small Outline Packages - MA 16-Pin SOICW
click to zoom

ACS37002LMABTR-050U5 Details

  • Manufacturer Part Number:

    ACS37002LMABTR-050U5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Date Of Intro:

    2020-10-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ACS37002LMABTR-050U5 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference design and layout guidelines in their application notes.
  • Calibration involves applying a known current and adjusting the zero-current output voltage to match the datasheet specification. Allegro provides a calibration procedure in their application notes.
  • The sensor's accuracy is affected by temperature, with a typical drift of ±0.1% per °C. Temperature compensation can be implemented using an external thermistor or thermocouple.
  • Yes, the ACS37002LMABTR-050U5 is designed to withstand vibrations up to 10g. However, it's essential to ensure proper PCB mounting and secure the sensor to prevent mechanical stress.
  • Use a shielded cable, keep the sensor away from high-current carrying conductors, and ensure good grounding practices to minimize EMI effects.
