ACS37002LMABTR-066B3 - Allegro Microsystems

Description: 400 kHz, High Accuracy Current Sensor with Pin-Selectable Gains

Download ACS37002LMABTR-066B3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

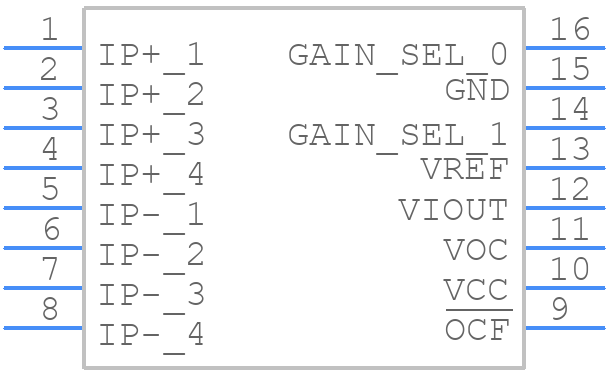

ACS37002LMABTR-066B3 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37002LMABTR-066B3 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA 16-Pin SOICW
click to zoom
3D Models
ACS37002LMABTR-066B3 - Allegro Microsystems - 3D model - Small Outline Packages - MA 16-Pin SOICW
click to zoom

ACS37002LMABTR-066B3 Details

  • Manufacturer Part Number:

    ACS37002LMABTR-066B3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Date Of Intro:

    2020-10-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Accuracy-Max (%):

    1%

  • Additional Feature:

    BODY HGT_MAX

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.3-3.0V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS37002LMABTR-066B3 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference layout in their application note AN296065.
  • Calibration involves applying a known current and adjusting the sensitivity and offset registers to achieve accurate measurement. Allegro provides a calibration procedure in their application note AN296065.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The ACS37002LMABTR-066B3 is rated for operation up to 150°C. However, the device's accuracy and reliability may degrade at high temperatures. Consult Allegro's application notes for guidance on high-temperature operation.
  • Follow proper PCB layout and shielding practices, and ensure that the device is properly grounded. Allegro provides EMC guidelines in their application note AN296065.
