Allegro provides a recommended PCB layout guide in their application note AN296065, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy of the current sensor.
Calibration of the ACS37002LMABTR-066U3 typically involves adjusting the zero-current output voltage and sensitivity to match the specific requirements of your application. Allegro provides a calibration procedure in their datasheet, which involves applying a known current to the sensor and adjusting the output voltage accordingly.
The ACS37002LMABTR-066U3 has an operating temperature range of -40°C to 150°C, making it suitable for use in a wide range of industrial and automotive applications.
To protect the ACS37002LMABTR-066U3 from EMI, Allegro recommends using proper shielding, grounding, and filtering techniques, such as using a metal shield around the sensor, connecting the sensor to a solid ground plane, and using EMI filters on the output signals.
The typical response time of the ACS37002LMABTR-066U3 is 2 μs, making it suitable for use in applications that require fast current sensing and measurement.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS37002LMABTR-066U3 Overview

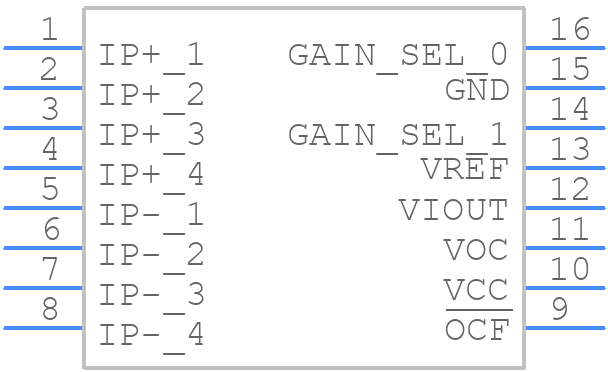

Use the download button to access the ACS37002LMABTR-066U3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37,
or try a keyword search, such as Other Sensors/Transducers
