ACS37002LMABTR-066U5 - Allegro Microsystems

Description: 400 kHz, High Accuracy Current Sensor with Pin-Selectable Gains

Download ACS37002LMABTR-066U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

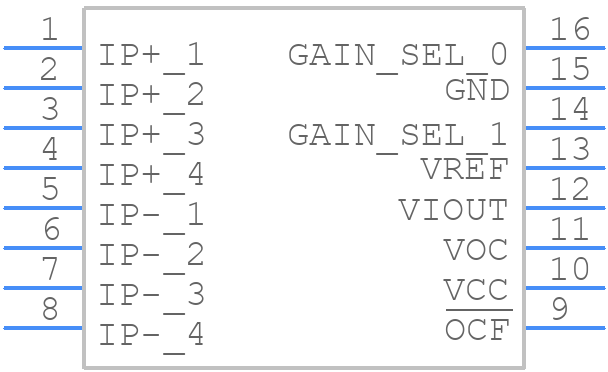

ACS37002LMABTR-066U5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37002LMABTR-066U5 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - MA, 16-Pin SOICW
click to zoom
3D Models
ACS37002LMABTR-066U5 - Allegro Microsystems - 3D model - Small Outline Packages - MA, 16-Pin SOICW
click to zoom

ACS37002LMABTR-066U5 Details

  • Manufacturer Part Number:

    ACS37002LMABTR-066U5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Date Of Intro:

    2020-10-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.35 mm

  • Body Length or Diameter:

    10.3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ACS37002LMABTR-066U5 Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout guide in their application note AN296065, which includes guidelines for trace routing, component placement, and shielding to minimize noise and ensure accurate current sensing.
  • Calibration is not required for the ACS37002LMABTR-066U5, as it is a factory-calibrated device. However, Allegro recommends performing a system-level calibration to account for any system-specific errors or offsets.
  • The maximum allowable voltage on the VCC pin is 6.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The ACS37002LMABTR-066U5 is rated for operation up to 150°C, but Allegro recommends derating the device's accuracy and performance at high temperatures. Consult the datasheet and application notes for more information on temperature-related performance.
  • Allegro recommends following proper EMI mitigation techniques, such as using shielding, filtering, and grounding, to minimize the impact of EMI on the device's performance. Consult the application notes and datasheet for more information on EMI considerations.
