Allegro provides a recommended PCB layout in their application note AN296065, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy.
Calibration is not typically required for the ACS37002LMCATR-050B3, as it is a pre-calibrated device. However, if you need to adjust the sensitivity or offset, Allegro provides a calibration procedure in their application note AN296065, which involves applying a known current to the device and measuring the output voltage.
The ACS37002LMCATR-050B3 has an operating temperature range of -40°C to 150°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and accuracy.
Yes, the ACS37002LMCATR-050B3 is designed to operate in high-vibration environments. Allegro has tested the device to withstand vibrations up to 20 G's, but it's recommended to follow proper mounting and PCB design guidelines to ensure reliable operation.
To protect the ACS37002LMCATR-050B3 from EMI, Allegro recommends using proper shielding, grounding, and filtering techniques. Additionally, the device has built-in EMI filters and is designed to meet CISPR 25 and FCC Part 15 Class B emissions standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS37002LMCATR-050B3 Overview

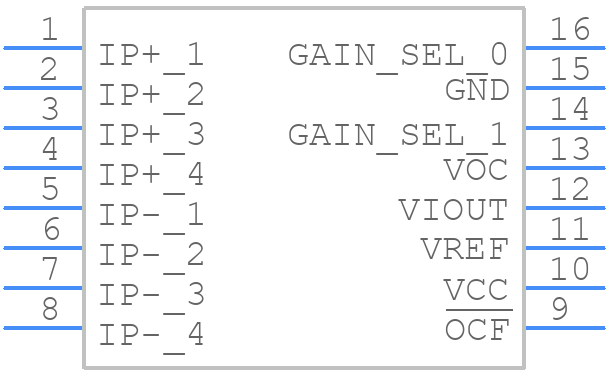

Use the download button to access the ACS37002LMCATR-050B3 schematic symbol, PCB footprint, and 3D model.
