ACS37002LMCATR-066B5 - Allegro Microsystems

Description: 400 kHz, High Accuracy Current Sensor with Pin-Selectable Gains

Download ACS37002LMCATR-066B5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

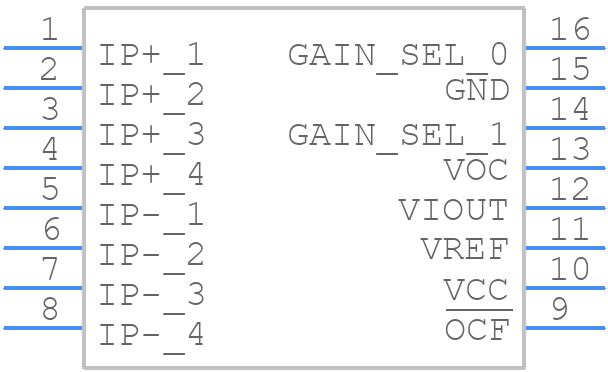

ACS37002LMCATR-066B5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37002LMCATR-066B5 - Allegro Microsystems PCB footprint - Other - Other - MC, 16-Pin SOICW-1
click to zoom
3D Models
ACS37002LMCATR-066B5 - Allegro Microsystems - 3D model - Other - MC, 16-Pin SOICW-1
click to zoom

ACS37002LMCATR-066B5 Details

  • Manufacturer Part Number:

    ACS37002LMCATR-066B5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    7.52 mm

  • Body Height:

    2.59 mm

  • Body Length or Diameter:

    11.29 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.51

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS37002LMCATR-066B5 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference layout in their application note AN296065.
  • Calibration involves applying a known current and adjusting the sensitivity and offset registers accordingly. Allegro provides a calibration procedure in their application note AN296065.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The ACS37002LMCATR-066B5 is rated for operation up to 150°C. However, the device's accuracy and reliability may degrade at high temperatures. Consult Allegro's application notes for guidance on high-temperature operation.
  • Use a shielded cable for the current sense lines, keep the sense lines short and away from noise sources, and ensure good grounding practices. Consult Allegro's application notes for additional EMC guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS37002LMCATR-066B5 Overview

Use the download button to access the ACS37002LMCATR-066B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37, or try a keyword search, such as Other Sensors/Transducers
