Allegro provides a recommended PCB layout guide in their application note AN296065, which includes guidelines for trace routing, component placement, and shielding to minimize noise and ensure accurate current sensing.
Calibration involves adjusting the zero-current output voltage (VOUT) to match the device's specified offset voltage. Allegro provides a calibration procedure in their datasheet, which involves applying a known current and adjusting the VOUT to match the expected value.
The ACS37002LMCATR-090B5 is rated for operation from -40°C to 150°C, but the device's accuracy and performance may degrade at extreme temperatures. It's essential to ensure the device operates within the recommended temperature range for optimal performance.
Yes, the ACS37002LMCATR-090B5 is designed to withstand high-vibration environments. However, it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To protect the ACS37002LMCATR-090B5 from EMI, use proper shielding, grounding, and layout techniques. Allegro recommends using a shielded enclosure, keeping the device away from high-current carrying traces, and using a common-mode choke to filter out high-frequency noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS37002LMCATR-090B5 Overview

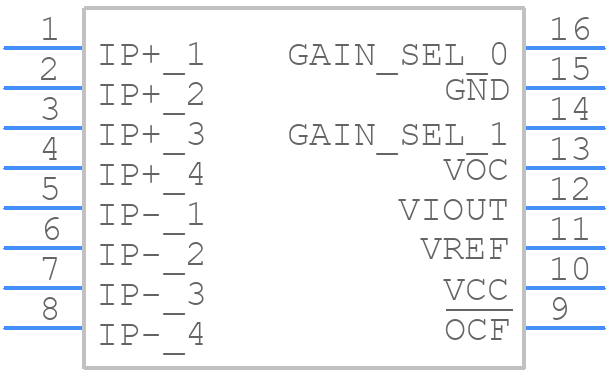

Use the download button to access the ACS37002LMCATR-090B5 schematic symbol, PCB footprint, and 3D model.
