ACS37003KMCATR-050B5 - Allegro Microsystems

Description: 400 Khz, High Accuracy Current Sensor With 5Kv Isolation

Download ACS37003KMCATR-050B5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

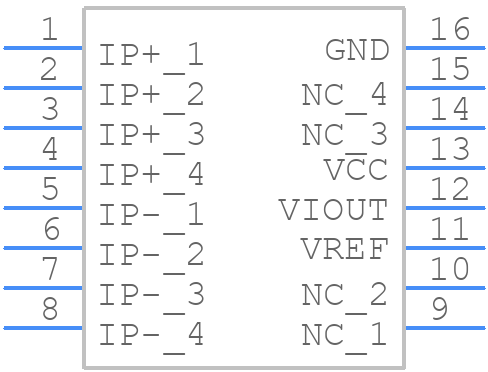

ACS37003KMCATR-050B5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37003KMCATR-050B5 - Allegro Microsystems PCB footprint - Other - Other - MC, 16-Pin SOICW-1
click to zoom
3D Models
ACS37003KMCATR-050B5 - Allegro Microsystems - 3D model - Other - MC, 16-Pin SOICW-1
click to zoom

ACS37003KMCATR-050B5 Details

  • Manufacturer Part Number:

    ACS37003KMCATR-050B5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    7.52 mm

  • Body Height:

    2.59 mm

  • Body Length or Diameter:

    11.29 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS37003KMCATR-050B5 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference design and layout guidelines in their application notes.
  • Calibration involves applying a known current and adjusting the zero-current offset and sensitivity registers. Allegro provides a calibration procedure in their application notes and software development kits.
  • The maximum allowable voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • Yes, the ACS37003 can operate with a 3.3V supply voltage, but the output voltage range will be reduced. Consult the datasheet for specific output voltage ranges at different supply voltages.
  • The ACS37003 has an overcurrent detection feature that can be used to trigger an interrupt or reset. The device also has a built-in overcurrent protection circuit that limits the output current to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS37003KMCATR-050B5 Overview

Use the download button to access the ACS37003KMCATR-050B5 schematic symbol, PCB footprint, and 3D model.
