Allegro provides a recommended PCB layout in their application note AN296065, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy of the ACS37003.
Calibration of the ACS37003 typically involves adjusting the sensitivity and offset of the device to match the specific requirements of your application. Allegro provides a calibration procedure in their application note AN296065, which includes steps for adjusting the sensitivity and offset using an external calibration resistor and a calibration tool.
The ACS37003 has an operating temperature range of -40°C to 150°C, making it suitable for use in a wide range of industrial and automotive applications. However, it's essential to note that the device's accuracy and performance may degrade at extreme temperatures.
Yes, the ACS37003 is designed to operate in high-vibration environments, making it suitable for use in industrial and automotive applications. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To protect the ACS37003 from EMI, it's essential to follow proper PCB design and layout practices, such as using a ground plane, shielding, and filtering. Additionally, Allegro recommends using a ferrite bead or a common-mode choke to filter out high-frequency noise and ensure reliable operation of the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS37003KMCATR-120B3 Overview

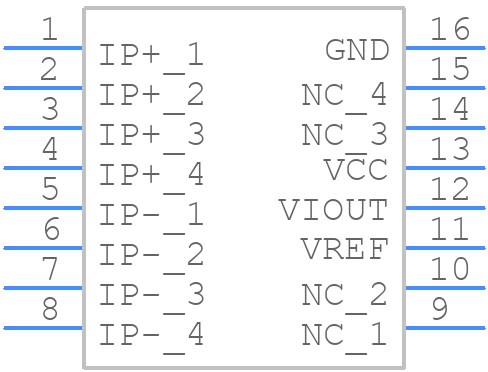

Use the download button to access the ACS37003KMCATR-120B3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37,
or try a keyword search, such as Other Sensors/Transducers
