ACS37200LLXTR-150B3 - Allegro Microsystems

Description: Current Sensor 150A 1 Channel Hall Effect Bidirectional 8-SMD, Flat Leads

Download ACS37200LLXTR-150B3 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ACS37200LLXTR-150B3 model

Email notifications will be applied after download.

Send part feedback

Symbol

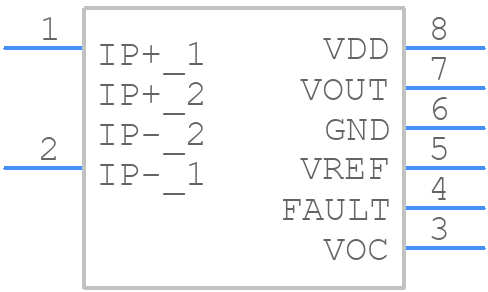

ACS37200LLXTR-150B3 - Allegro Microsystems - PCB symbol

PCB Footprints

ACS37200LLXTR-150B3 - Allegro Microsystems PCB footprint - Other - Other - LX Package, 8-pin flat PSOF

3D Models

ACS37200LLXTR-150B3 - Allegro Microsystems - 3D model - Other - LX Package, 8-pin flat PSOF

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACS37200LLXTR-150B3
Part Number ACS37200LLXTR-150B3
Manufacturer Allegro Microsystems
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - LX Package, 8-pin flat PSOF
Released Date Jun 5, 2026
Last Modified Date Jun 5, 2026 11:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ACS37200LLXTR-150B3 Details

Manufacturer Part Number:
ACS37200LLXTR-150B3
Manufacturer:
Allegro MicroSystems LLC

Trust Checks

Expert Contribution

System Verified

Community Approved

ACS37200LLXTR-150B3 Overview

Use the download button to access the ACS37200LLXTR-150B3 schematic symbol, PCB footprint, and 3D model.
