ACS37610LLUATR-020B5 - Allegro Microsystems

Description: Board Mount Current Sensors 5V +/-100G 20mV/G TSSOP8 LOW NOISE HALL-BASED CORELESS CURRENT SENSOR

Download ACS37610LLUATR-020B5 Model

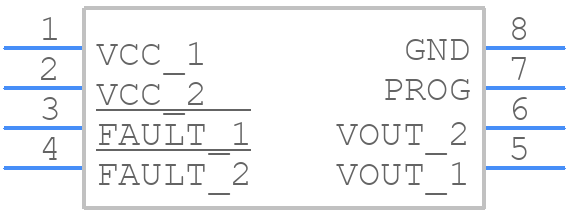

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACS37610LLUATR-020B5 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LU, 8-Pin TSSOP
click to zoom
3D Models
ACS37610LLUATR-020B5 - Allegro Microsystems  - 3D model - Small Outline Packages - LU, 8-Pin TSSOP
click to zoom

ACS37610LLUATR-020B5 Details

  • Manufacturer Part Number:

    ACS37610LLUATR-020B5

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Sensors/Transducers Type:

    CURRENT SENSOR

ACS37610LLUATR-020B5 Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout guide in their application note AN296065, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy of the current sensor.
  • Calibration of the ACS37610LLUATR-020B5 typically involves adjusting the zero-current offset and sensitivity of the device to match the specific requirements of your application. Allegro provides a calibration procedure in their application note AN296065, which includes steps for measuring the device's output voltage, calculating the offset and sensitivity, and adjusting the calibration resistors accordingly.
  • While the datasheet specifies a recommended operating voltage range of 3.0 V to 5.5 V for the VCC pin, Allegro recommends that the maximum allowable voltage on the VCC pin should not exceed 6.0 V to prevent damage to the device.
  • The ACS37610LLUATR-020B5 is rated for operation up to 150°C, but Allegro recommends that the device be derated for operation above 125°C to ensure reliable performance and accuracy. Additionally, the device's accuracy and linearity may be affected at high temperatures, so it's essential to characterize the device's performance under the specific operating conditions of your application.
  • To ensure EMC with the ACS37610LLUATR-020B5, Allegro recommends following proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as necessary. Additionally, the device's output should be filtered and shielded to prevent electromagnetic interference (EMI) and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS37610LLUATR-020B5 Overview

Use the download button to access the ACS37610LLUATR-020B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37, or try a keyword search, such as Other Sensors/Transducers
