ACS37612LLUATR-005B5 - Allegro Microsystems

Description: Standalone Coreless Differential Current Sensor IC

Download ACS37612LLUATR-005B5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

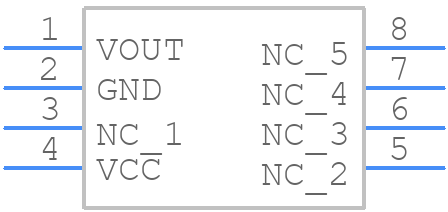

ACS37612LLUATR-005B5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS37612LLUATR-005B5 - Allegro Microsystems PCB footprint - Other - Other - 8-pin TSSOP package (suffix LU)
click to zoom
3D Models
ACS37612LLUATR-005B5 - Allegro Microsystems - 3D model - Other - 8-pin TSSOP package (suffix LU)
click to zoom

ACS37612LLUATR-005B5 Details

  • Manufacturer Part Number:

    ACS37612LLUATR-005B5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    4.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

ACS37612LLUATR-005B5 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sensitive analog traces away from the digital traces and ensure a low-impedance path for the current sense lines.
  • Calibration involves applying a known current to the device and adjusting the offset and gain registers to achieve accurate measurement. Refer to the application note AN296065 for detailed calibration procedures.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The device is rated for operation up to 150°C. However, the accuracy and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device for high-temperature applications.
  • Follow proper PCB layout and shielding techniques, use a common-mode choke on the current sense lines, and ensure a low-impedance path for the current sense lines to minimize electromagnetic interference.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS37612LLUATR-005B5 Overview

Use the download button to access the ACS37612LLUATR-005B5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS37, or try a keyword search, such as Other Sensors/Transducers
