ACS37612LLUATR-010B5 - Allegro Microsystems

Description: Standalone Coreless Differential Current Sensor IC

Download ACS37612LLUATR-010B5 Model

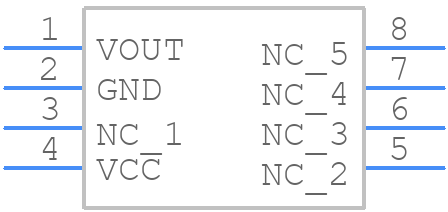

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACS37612LLUATR-010B5 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LU, 8-Pin TSSOP
click to zoom
3D Models
ACS37612LLUATR-010B5 - Allegro Microsystems  - 3D model - Small Outline Packages - LU, 8-Pin TSSOP
click to zoom

ACS37612LLUATR-010B5 Details

  • Manufacturer Part Number:

    ACS37612LLUATR-010B5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    4.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

ACS37612LLUATR-010B5 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference layout in the datasheet.
  • Calibration involves applying a known current and adjusting the zero-current offset and sensitivity registers. Allegro provides a calibration procedure in the datasheet.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The ACS37612LLUATR-010B5 is rated for operation up to 150°C. However, accuracy and reliability may degrade at high temperatures. Consult the datasheet for temperature-related specifications.
  • Use a shielded cable for the current sense lines, keep the device away from high-frequency sources, and follow proper PCB layout and grounding practices to minimize electromagnetic interference.
