ACS70310LKTATN-001B5-C - Allegro Microsystems

Description: 240kHz, Highest Accuracy Programmable Linear Sensor IC with Reverse Battery Protection for Core-Based Current Sensing

Download ACS70310LKTATN-001B5-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

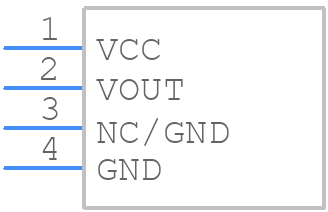

Symbol
ACS70310LKTATN-001B5-C - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS70310LKTATN-001B5-C - Allegro Microsystems PCB footprint - Other - Other - KT, 4-Pin SIP, TN Leadform_2021
click to zoom
3D Models
ACS70310LKTATN-001B5-C - Allegro Microsystems - 3D model - Other - KT, 4-Pin SIP, TN Leadform_2021
click to zoom

ACS70310LKTATN-001B5-C Details

  • Manufacturer Part Number:

    ACS70310LKTATN-001B5-C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    6

  • Additional Feature:

    REVERSE BATTERY PROTECTION

  • Body Breadth:

    1 mm

  • Body Height:

    3.43 mm

  • Body Length or Diameter:

    5.21 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    4

  • Operating Current-Max:

    15 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    PUSH-PULL

  • Output Interface Type:

    3-WIRE INTERFACE

  • Output Range:

    0.5-4.5V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Packing Method:

    TR, 13 INCH

  • Resistance:

    4 Ω

  • Screening Level:

    AEC-Q100

  • Sensitivity (mV/G):

    1 mV/G

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    PIN

ACS70310LKTATN-001B5-C Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference design and layout guidelines in their application notes.
  • Calibration involves applying a known current and adjusting the offset and sensitivity registers to achieve accurate measurement. Allegro provides a calibration procedure in their application notes.
  • The maximum allowable voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • Yes, the ACS70310 can operate with a 3.3V supply voltage. However, the output voltage range may be reduced, and the device's accuracy and sensitivity may be affected.
  • The ACS70310 outputs a 16-bit signed integer representing the measured current. The output data can be processed using a microcontroller or a dedicated IC, and can be scaled and calibrated according to the application requirements.
