Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and accuracy.
Calibration is typically done through the device's internal calibration registers. Allegro provides a calibration guide in their application note AN296070, which outlines the steps to calibrate the device for specific applications, including zero-point calibration and sensitivity adjustment.
The ACS70311LKTATN-2P5B5-C has an operating temperature range of -40°C to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure proper thermal management to prevent overheating and maintain accuracy.
Yes, the ACS70311LKTATN-2P5B5-C is designed to operate in high-vibration environments. Allegro has tested the device to withstand vibrations up to 20 G, making it suitable for applications such as industrial automation, robotics, and automotive systems.
Allegro provides guidelines for EMC in their application note AN296071, which includes recommendations for PCB layout, shielding, and filtering to minimize electromagnetic interference (EMI) and ensure compliance with relevant EMC standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACS70311LKTATN-2P5B5-C Overview

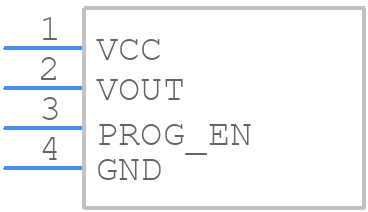

Use the download button to access the ACS70311LKTATN-2P5B5-C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS70,
or try a keyword search, such as Magnetic Field Sensors
