ACS70331EESATR-2P5U3 - Allegro Microsystems

Description: High Sensitivity, 1 MHz, GMR-Based Current Sensor IC in Space-Saving Low Resistance QFN and SOIC packages

Download ACS70331EESATR-2P5U3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

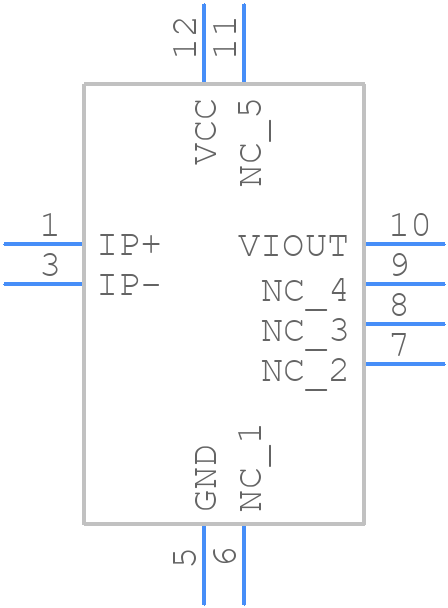

ACS70331EESATR-2P5U3 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS70331EESATR-2P5U3 - Allegro Microsystems PCB footprint - Other - Other - ES, 12-Contact QFN-2
click to zoom
3D Models
ACS70331EESATR-2P5U3 - Allegro Microsystems - 3D model - Other - ES, 12-Contact QFN-2
click to zoom

ACS70331EESATR-2P5U3 Details

  • Manufacturer Part Number:

    ACS70331EESATR-2P5U3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3 mm

  • Body Height:

    0.725 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE,GMR

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACS70331EESATR-2P5U3 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sense lines as short as possible and away from noise sources. Use a low-impedance path for the current conductor and a high-impedance path for the sense lines.
  • Calibration involves applying a known current to the device and adjusting the offset and gain registers to achieve accurate measurement. Refer to the application note AN296065 for detailed calibration procedures.
  • The maximum allowable current is 50 A, but it's recommended to operate within the specified range of -40 A to 40 A for optimal accuracy and reliability.
  • The device has an overcurrent detection feature that can be used to trigger an interrupt or shutdown the system. Implement a suitable overcurrent protection scheme based on the application requirements.
  • The device is rated for operation up to 150°C, but the accuracy and reliability may degrade at higher temperatures. Ensure proper thermal management and consider derating the device for high-temperature applications.
