ACS70331EOLCTR-2P5B3 - Allegro Microsystems

Description: High Sensitivity, Gmr-Based Current Sensor IC

Download ACS70331EOLCTR-2P5B3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

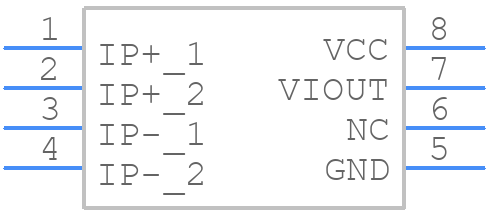

ACS70331EOLCTR-2P5B3 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS70331EOLCTR-2P5B3 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - Package LC, 8-pin SOICN
click to zoom
3D Models
ACS70331EOLCTR-2P5B3 - Allegro Microsystems - 3D model - Small Outline Packages - Package LC, 8-pin SOICN
click to zoom

ACS70331EOLCTR-2P5B3 Details

  • Manufacturer Part Number:

    ACS70331EOLCTR-2P5B3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE,GMR

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

ACS70331EOLCTR-2P5B3 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference layout in their application note AN296065.
  • Calibration involves applying a known current to the device and adjusting the offset and sensitivity registers accordingly. Allegro provides a calibration procedure in their application note AN296065.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The ACS70331EOLCTR-2P5B3 is rated for operation up to 150°C. However, the device's accuracy and reliability may degrade at high temperatures. Consult Allegro's application notes for guidance on high-temperature operation.
  • Follow proper PCB layout and shielding practices, and ensure that the device is properly decoupled and filtered. Consult Allegro's application notes and the IEC 61000-4-2 standard for guidance on EMC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS70331EOLCTR-2P5B3 Overview

Use the download button to access the ACS70331EOLCTR-2P5B3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS70, or try a keyword search, such as Other Sensors/Transducers
