ACS70331EOLCTR-2P5U3 - Allegro Microsystems

Description: High Sensitivity, Gmr-Based Current Sensor IC

Download ACS70331EOLCTR-2P5U3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

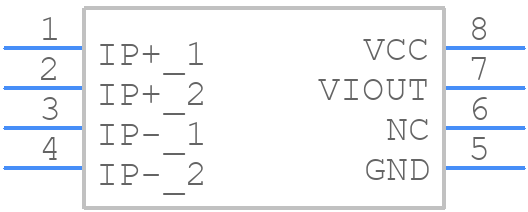

ACS70331EOLCTR-2P5U3 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS70331EOLCTR-2P5U3 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - 8 SOICN
click to zoom
3D Models
ACS70331EOLCTR-2P5U3 - Allegro Microsystems - 3D model - Small Outline Packages - 8 SOICN
click to zoom

ACS70331EOLCTR-2P5U3 Details

  • Manufacturer Part Number:

    ACS70331EOLCTR-2P5U3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE,GMR

  • Supply Voltage-Max:

    4.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

ACS70331EOLCTR-2P5U3 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ACS70331EOLCTR-2P5U3 involves keeping the sense lines as short as possible, using a ground plane to reduce noise, and placing the device close to the current-carrying conductor. Allegro provides a recommended PCB layout in their application note AN296065.
  • Calibration of the ACS70331EOLCTR-2P5U3 involves applying a known current to the device and adjusting the output voltage to match the expected value. Allegro provides a calibration procedure in their application note AN296065.
  • The maximum allowable current for the ACS70331EOLCTR-2P5U3 is 50 A, but it's recommended to operate the device at a maximum of 40 A to ensure accurate and reliable operation.
  • The output voltage of the ACS70331EOLCTR-2P5U3 is a differential voltage that requires a differential amplifier or an instrumentation amplifier to condition the signal for further processing. Allegro provides a reference design for a differential amplifier in their application note AN296065.
  • The operating temperature range of the ACS70331EOLCTR-2P5U3 is -40°C to 150°C, but the device is only specified for accurate operation from -20°C to 85°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS70331EOLCTR-2P5U3 Overview

Use the download button to access the ACS70331EOLCTR-2P5U3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS70, or try a keyword search, such as Other Sensors/Transducers
