ACS709LLFTR-10BB-T - Allegro Microsystems

Description: High Bandwidth, Fast Fault Response Current Sensor IC In Thermally Enhanced Package

Download ACS709LLFTR-10BB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

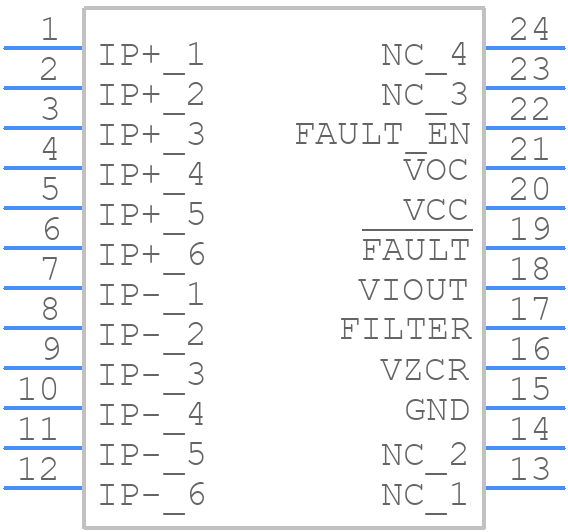

ACS709LLFTR-10BB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS709LLFTR-10BB-T - Allegro Microsystems PCB footprint - Other - Other - Package LF, 24-pin QSOP
click to zoom
3D Models
ACS709LLFTR-10BB-T - Allegro Microsystems - 3D model - Other - Package LF, 24-pin QSOP
click to zoom

ACS709LLFTR-10BB-T Details

  • Manufacturer Part Number:

    ACS709LLFTR-10BB-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    QSOP-24

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Additional Feature:

    BODY HGT-MAX

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    8.645 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SSOP24,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS709LLFTR-10BB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS709LLFTR-10BB-T is -40°C to 150°C.
  • The output voltage of the ACS709LLFTR-10BB-T is ratiometric, meaning it is proportional to the supply voltage. It is recommended to use a voltage regulator to maintain a stable supply voltage to ensure accurate output voltage readings.
  • Allegro recommends a 4-layer PCB layout with a solid ground plane and a separate power plane for the ACS709LLFTR-10BB-T. The device should be placed close to the current-carrying conductor to minimize noise and ensure accurate measurements.
  • The ACS709LLFTR-10BB-T does not require calibration. It is a self-contained current sensor with an integrated amplifier and ADC. However, it is recommended to perform a zero-current calibration to account for any offset errors.
  • The response time of the ACS709LLFTR-10BB-T is typically around 1 μs, making it suitable for high-speed current measurements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS709LLFTR-10BB-T Overview

Use the download button to access the ACS709LLFTR-10BB-T schematic symbol, PCB footprint, and 3D model.
