ACS709LLFTR-35BB-T - Allegro Microsystems

Description: High Bandwidth, Fast Fault Response Current Sensor IC In Thermally Enhanced Package

Download ACS709LLFTR-35BB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

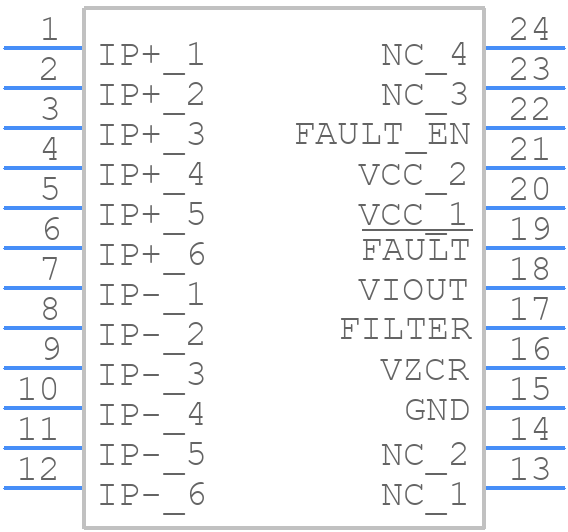

ACS709LLFTR-35BB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS709LLFTR-35BB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - 24-Pin SOIC i
click to zoom
3D Models
ACS709LLFTR-35BB-T - Allegro Microsystems - 3D model - Small Outline Packages - 24-Pin SOIC i
click to zoom

ACS709LLFTR-35BB-T Details

  • Manufacturer Part Number:

    ACS709LLFTR-35BB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    QSOP-24

  • Pin Count:

    24

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Additional Feature:

    BODY HGT-MAX

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    8.645 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SSOP24,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS709LLFTR-35BB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS709LLFTR-35BB-T is -40°C to 150°C.
  • The ACS709LLFTR-35BB-T does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage, and the sensitivity is fixed. However, you may need to adjust the gain and offset of your system to optimize performance.
  • Allegro recommends a 4-layer PCB with a solid ground plane on the bottom layer, and the ACS709LLFTR-35BB-T should be placed near the current-carrying conductor to minimize noise and interference.
  • Yes, the ACS709LLFTR-35BB-T is designed to withstand high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device is securely attached to the PCB.
  • To protect the ACS709LLFTR-35BB-T from EMI, use a shielded cable or a twisted pair cable for the output signal, and consider adding a common-mode choke or a ferrite bead to the output lines.
