ACS710KLATR-25CB-NL-T - Allegro Microsystems

Description: 120 kHz Bandwidth, High-Voltage Isolation Current Sensor IC with Integrated Overcurrent Detection

Download ACS710KLATR-25CB-NL-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

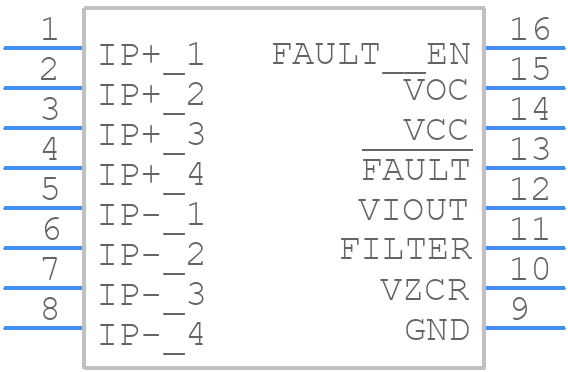

ACS710KLATR-25CB-NL-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS710KLATR-25CB-NL-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-PIN SOICW
click to zoom
3D Models
ACS710KLATR-25CB-NL-T - Allegro Microsystems - 3D model - Small Outline Packages - LA, 16-PIN SOICW
click to zoom

ACS710KLATR-25CB-NL-T Details

  • Manufacturer Part Number:

    ACS710KLATR-25CB-NL-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

ACS710KLATR-25CB-NL-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS710KLATR-25CB-NL-T is -40°C to 150°C.
  • To ensure accurate current measurements, make sure to follow proper PCB layout guidelines, use a low-impedance current path, and minimize noise coupling. Also, calibrate the device according to the datasheet recommendations.
  • The recommended PCB layout for the ACS710KLATR-25CB-NL-T involves placing the device close to the current-carrying conductor, using a low-impedance current path, and minimizing the distance between the device and the current-carrying conductor.
  • To handle EMI, use proper shielding, grounding, and filtering techniques. Also, ensure that the device is placed in a shielded area, and use a low-pass filter to reduce high-frequency noise.
  • The typical response time of the ACS710KLATR-25CB-NL-T is 2 μs, but this can vary depending on the specific application and operating conditions.
