ACS710KLATR-25CB-T - Allegro Microsystems

Description: 120 kHz Bandwidth, High-Voltage Isolation Current Sensor IC with Integrated Overcurrent Detection

Download ACS710KLATR-25CB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

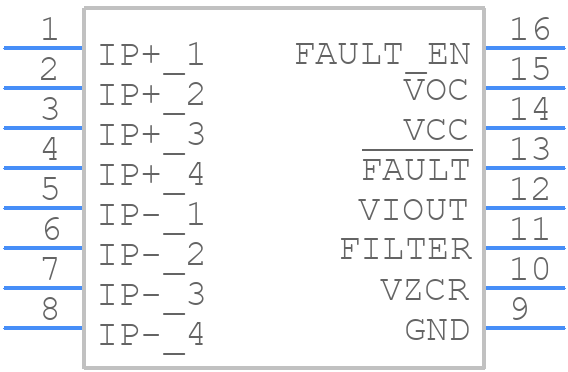

Symbol
ACS710KLATR-25CB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS710KLATR-25CB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LA, 16-PIN SOICW
click to zoom
3D Models
ACS710KLATR-25CB-T - Allegro Microsystems - 3D model - Small Outline Packages - LA, 16-PIN SOICW
click to zoom

ACS710KLATR-25CB-T Details

  • Manufacturer Part Number:

    ACS710KLATR-25CB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Body Breadth:

    7.5 mm

  • Body Height:

    2.34 mm

  • Body Length or Diameter:

    10.21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

ACS710KLATR-25CB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS710KLATR-25CB-T is -40°C to 150°C.
  • To ensure accurate current measurements, make sure to follow proper PCB layout guidelines, use a low-impedance path for the current sense lines, and minimize noise coupling. Also, calibrate the device according to the datasheet recommendations.
  • The recommended PCB layout for the ACS710KLATR-25CB-T involves keeping the current sense lines as short as possible, using a ground plane under the device, and minimizing the distance between the device and the current sense resistors.
  • To handle overcurrent conditions, use the device's built-in overcurrent detection feature, which provides an output signal when the current exceeds a programmable threshold. You can also use external circuitry to detect overcurrent conditions and take appropriate action.
  • The typical response time for the ACS710KLATR-25CB-T is 1.5 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS710KLATR-25CB-T Overview

Use the download button to access the ACS710KLATR-25CB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
