ACS711EEXLT-15AB-T - Allegro Microsystems

Description: Hall Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications

Download ACS711EEXLT-15AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

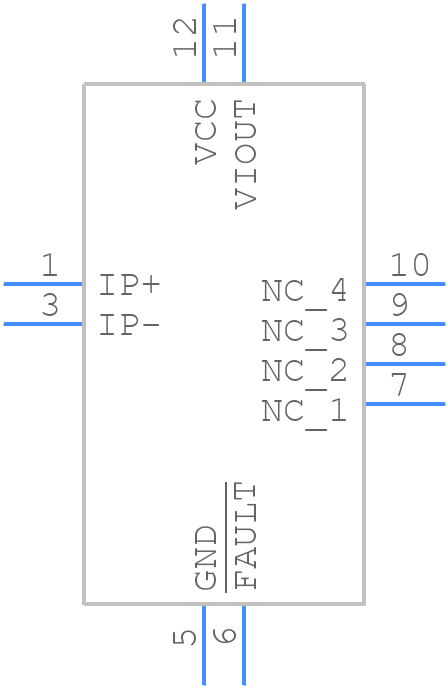

ACS711EEXLT-15AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS711EEXLT-15AB-T - Allegro Microsystems PCB footprint - Other - Other - ACS711EEXLT-15AB-T-1
click to zoom
3D Models
ACS711EEXLT-15AB-T - Allegro Microsystems - 3D model - Other - ACS711EEXLT-15AB-T-1
click to zoom

ACS711EEXLT-15AB-T Details

  • Manufacturer Part Number:

    ACS711EEXLT-15AB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-12

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS711EEXLT-15AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS711EEXLT-15AB-T is -40°C to 150°C.
  • The ACS711EEXLT-15AB-T has an internal overcurrent detection circuit that limits the output current to prevent damage to the device.
  • The typical response time for the ACS711EEXLT-15AB-T is 1.5 μs.
  • Yes, the ACS711EEXLT-15AB-T can be used in high-voltage applications up to 100 V.
  • The ACS711EEXLT-15AB-T has a typical accuracy of ±1.5% at 25°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS711EEXLT-15AB-T Overview

Use the download button to access the ACS711EEXLT-15AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
