ACS711EEXLT-31AB-T - Allegro Microsystems

Description: Hall Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications

Download ACS711EEXLT-31AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

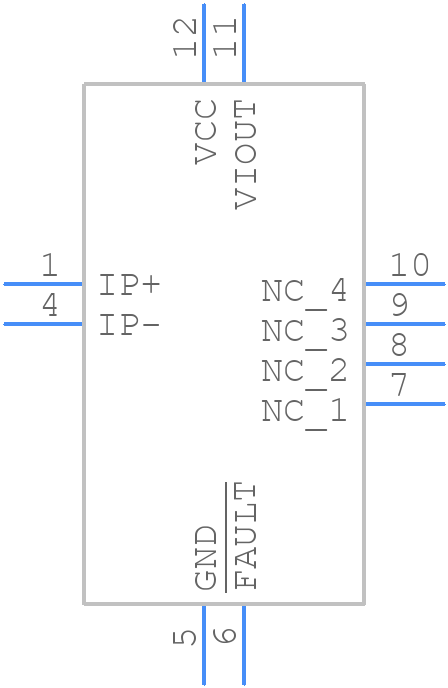

ACS711EEXLT-31AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS711EEXLT-31AB-T - Allegro Microsystems PCB footprint - Other - Other - ACS711EEXLT-31AB-T-1
click to zoom
3D Models
ACS711EEXLT-31AB-T - Allegro Microsystems - 3D model - Other - ACS711EEXLT-31AB-T-1
click to zoom

ACS711EEXLT-31AB-T Details

  • Manufacturer Part Number:

    ACS711EEXLT-31AB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-12

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN
