ACS711ELCTR-25AB-T - Allegro Microsystems

Description: Hall-Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications

Download ACS711ELCTR-25AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

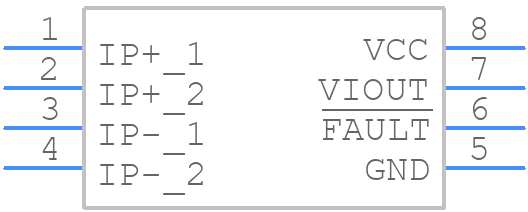

ACS711ELCTR-25AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS711ELCTR-25AB-T - Allegro Microsystems PCB footprint - Other - Other - LC,8-pin SOIC
click to zoom
3D Models
ACS711ELCTR-25AB-T - Allegro Microsystems - 3D model - Other - LC,8-pin SOIC
click to zoom

ACS711ELCTR-25AB-T Details

  • Manufacturer Part Number:

    ACS711ELCTR-25AB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    5.5 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Circuit Type:

    SINGLE-ENDED

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    4.6 µs

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ACS711ELCTR-25AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS711ELCTR-25AB-T is -40°C to 125°C.
  • Calibration is not required for the ACS711ELCTR-25AB-T as it is a ratiometric device, meaning that the output voltage is proportional to the supply voltage. However, it is recommended to follow the application note AN26941 from Allegro MicroSystems for proper PCB layout and component selection to ensure accurate current measurement.
  • The recommended PCB layout for the ACS711ELCTR-25AB-T involves keeping the device as close as possible to the current-carrying conductor, using a ground plane to minimize noise, and keeping the signal traces as short as possible. Refer to the application note AN26941 from Allegro MicroSystems for more details.
  • Yes, the ACS711ELCTR-25AB-T can be used for bidirectional current measurement. The device has a differential output that allows it to measure both positive and negative currents.
  • The response time of the ACS711ELCTR-25AB-T is typically 1 μs, making it suitable for high-speed current measurement applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS711ELCTR-25AB-T Overview

Use the download button to access the ACS711ELCTR-25AB-T schematic symbol, PCB footprint, and 3D model.
