ACS711KEXLT-15AB-J - Allegro Microsystems

Description: Hall-Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications

Download ACS711KEXLT-15AB-J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

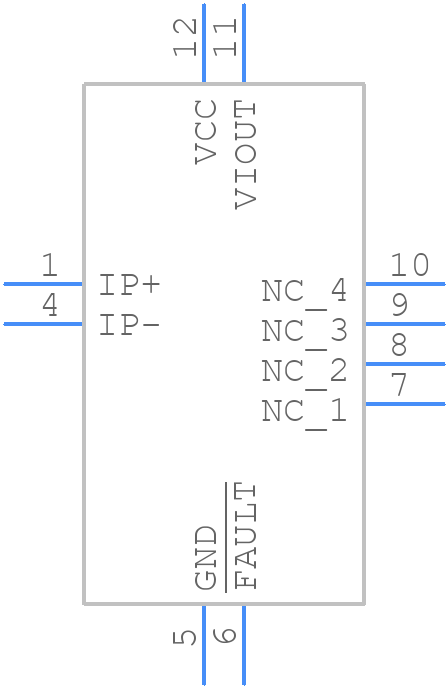

ACS711KEXLT-15AB-J - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS711KEXLT-15AB-J - Allegro Microsystems PCB footprint - Other - Other - ACS711EEXLT-31AB-T-1
click to zoom
3D Models
ACS711KEXLT-15AB-J - Allegro Microsystems - 3D model - Other - ACS711EEXLT-31AB-T-1
click to zoom

ACS711KEXLT-15AB-J Details

  • Manufacturer Part Number:

    ACS711KEXLT-15AB-J

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Allegro MicroSystems LLC

ACS711KEXLT-15AB-J Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS711KEXLT-15AB-J is -40°C to 150°C.
  • The ACS711KEXLT-15AB-J does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage. However, you may need to adjust the gain and offset of the output signal to match your specific application.
  • The bandwidth of the ACS711KEXLT-15AB-J is 80 kHz. This means that the device can accurately measure currents up to 80 kHz.
  • Yes, the ACS711KEXLT-15AB-J can be used to measure AC currents. However, the device is optimized for DC current measurement, and the accuracy may degrade at high frequencies.
  • The power consumption of the ACS711KEXLT-15AB-J is typically 10 mA at 5 V supply voltage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS711KEXLT-15AB-J Overview

Use the download button to access the ACS711KEXLT-15AB-J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
