ACS711KEXLT-15AB-T - Allegro Microsystems

Description: Hall-Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications

Download ACS711KEXLT-15AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

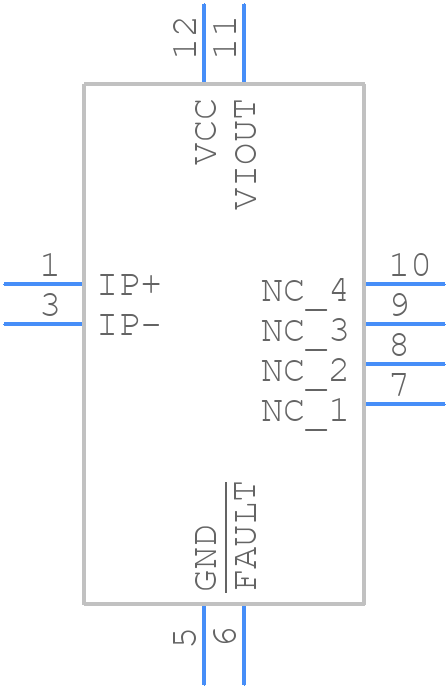

ACS711KEXLT-15AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS711KEXLT-15AB-T - Allegro Microsystems PCB footprint - Other - Other - ACS711KEXLT-15AB-T
click to zoom
3D Models
ACS711KEXLT-15AB-T - Allegro Microsystems - 3D model - Other - ACS711KEXLT-15AB-T
click to zoom

ACS711KEXLT-15AB-T Details

  • Manufacturer Part Number:

    ACS711KEXLT-15AB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS711KEXLT-15AB-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS711KEXLT-15AB-T is -40°C to 150°C.
  • The output voltage of the ACS711KEXLT-15AB-T is ratiometric, meaning it scales with the supply voltage. The output voltage range is 0.5V to 4.5V, and it's recommended to use a voltage regulator to maintain a stable output voltage.
  • A good PCB layout for the ACS711KEXLT-15AB-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device's pins.
  • The ACS711KEXLT-15AB-T does not require calibration. It's a ratiometric device, and its output voltage is proportional to the input current. However, you may need to adjust the gain and offset of the output signal to match your specific application requirements.
  • The ACS711KEXLT-15AB-T can measure currents up to ±15A, with a maximum overcurrent detection threshold of ±16.5A.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS711KEXLT-15AB-T Overview

Use the download button to access the ACS711KEXLT-15AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
