ACS711KLCTR-12AB-T - Allegro Microsystems

Description: Hall-Effect Linear Current Sensor with Overcurrent Fault Output for <100 V Isolation Applications

Download ACS711KLCTR-12AB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

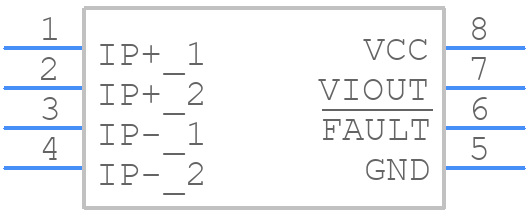

ACS711KLCTR-12AB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS711KLCTR-12AB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LC 8-pin SOIC
click to zoom
3D Models
ACS711KLCTR-12AB-T - Allegro Microsystems - 3D model - Small Outline Packages - LC 8-pin SOIC
click to zoom

ACS711KLCTR-12AB-T Details

  • Manufacturer Part Number:

    ACS711KLCTR-12AB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    5.5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Circuit Type:

    SINGLE-ENDED

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    4.6 µs

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ACS711KLCTR-12AB-T Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The output voltage of the ACS711KLCTR-12AB-T is proportional to the input current. The output voltage can be calculated using the sensitivity specification in the datasheet, which is typically 110 mV/A.
  • The bandwidth of the ACS711KLCTR-12AB-T is typically 80 kHz. This means that the device can accurately measure currents up to 80 kHz.
  • Yes, the ACS711KLCTR-12AB-T can be used to measure AC currents. However, the device is optimized for DC current measurement, and the accuracy may degrade at high frequencies.
  • The output voltage offset of the ACS711KLCTR-12AB-T can be handled by using an external voltage reference or by calibrating the device during production. The offset can also be compensated for in software.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS711KLCTR-12AB-T Overview

Use the download button to access the ACS711KLCTR-12AB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
