ACS71240KEXBLT-010B3-115 - Allegro Microsystems

Description: Automotive-Grade, Galvanically Isolated Current Sensor IC With Common-Mode Field Rejection And Overcurrent Detection

Download ACS71240KEXBLT-010B3-115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

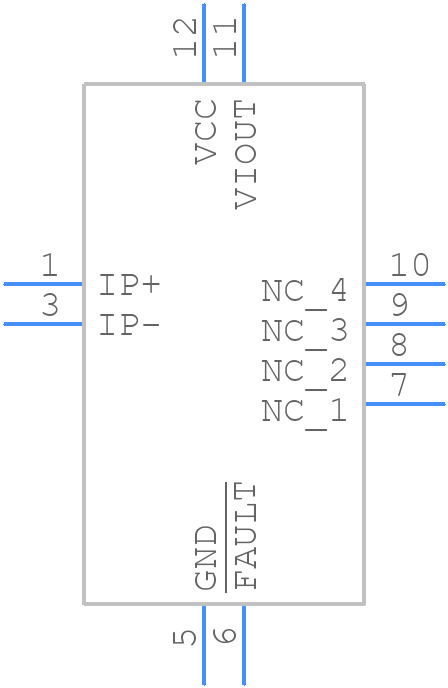

ACS71240KEXBLT-010B3-115 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS71240KEXBLT-010B3-115 - Allegro Microsystems PCB footprint - Other - Other - EX_1
click to zoom
3D Models
ACS71240KEXBLT-010B3-115 - Allegro Microsystems - 3D model - Other - EX_1
click to zoom

ACS71240KEXBLT-010B3-115 Details

  • Manufacturer Part Number:

    ACS71240KEXBLT-010B3-115

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3 mm

  • Body Height:

    0.675 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS71240KEXBLT-010B3-115 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS71240 is -40°C to 150°C.
  • The ACS71240 does not require calibration. It is a ratiometric device, meaning that the output voltage is proportional to the supply voltage. However, it's recommended to follow the application note AN26941 from Allegro MicroSystems for proper PCB layout and design guidelines.
  • The bandwidth of the ACS71240 is 80 kHz. It's recommended to use a low-pass filter to remove high-frequency noise and ensure accurate current measurements.
  • Yes, the ACS71240 can be used for AC current measurement. However, it's essential to ensure that the frequency of the AC current is within the bandwidth of the device (80 kHz). Additionally, the output voltage will be a sinusoidal waveform, and you may need to use additional circuitry to convert it to a DC signal.
  • The ACS71240 has a temperature coefficient of ±1.5% per °C. This means that the output voltage will vary by ±1.5% for every 1°C change in temperature. It's essential to consider this when designing your application, especially if you're working in high-temperature environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS71240KEXBLT-010B3-115 Overview

Use the download button to access the ACS71240KEXBLT-010B3-115 schematic symbol, PCB footprint, and 3D model.
