ACS71240KEXBLT-045B5 - Allegro Microsystems

Description: Board Mount Current Sensors CURRENT SENSOR IC WITH COMMON MODE REJECTION AND OVERCURRENT FAULT

Download ACS71240KEXBLT-045B5 Model

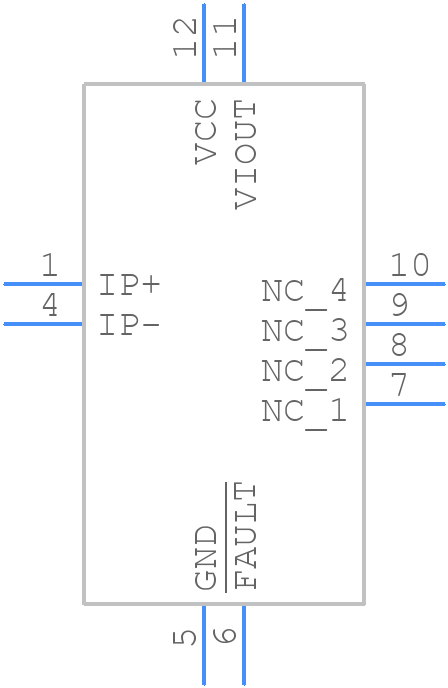

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACS71240KEXBLT-045B5 - Allegro Microsystems PCB footprint - Other - Other - 12-contact QFN with wettable flank
click to zoom
3D Models
ACS71240KEXBLT-045B5 - Allegro Microsystems  - 3D model - Other - 12-contact QFN with wettable flank
click to zoom

ACS71240KEXBLT-045B5 Details

  • Manufacturer Part Number:

    ACS71240KEXBLT-045B5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3 mm

  • Body Height:

    0.675 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

ACS71240KEXBLT-045B5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS71240KEXBLT-045B5 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within the recommended temperature range of -20°C to 85°C for optimal performance and reliability.
  • The output voltage of the ACS71240KEXBLT-045B5 is a differential output, which means it's a pair of outputs (VOUTP and VOUTN) that are 180° out of phase with each other. To handle the output voltage, you can use a differential amplifier or an instrumentation amplifier to convert the differential output to a single-ended output, or use a microcontroller with a differential analog-to-digital converter (ADC) input.
  • The recommended PCB layout for the ACS71240KEXBLT-045B5 involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and load. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and electromagnetic interference (EMI).
  • The ACS71240KEXBLT-045B5 does not require calibration, as it's a ratiometric device that provides an output voltage proportional to the input current. However, you may need to perform a zero-current calibration to account for any offset voltage in the device. This can be done by measuring the output voltage when no current is flowing through the device and subtracting the offset voltage from the output voltage readings.
  • The recommended power supply decoupling for the ACS71240KEXBLT-045B5 involves using a 10 μF ceramic capacitor and a 1 μF ceramic capacitor in parallel, connected between the VCC pin and the GND pin. This helps to filter out high-frequency noise and ensure stable operation of the device.
