ACS71240KEXBLT-050U5 - Allegro Microsystems

Description: Automotive-Grade, Galvanically Isolated Current Sensor IC With Common-Mode Field Rejection And Overcurrent Detection

Download ACS71240KEXBLT-050U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

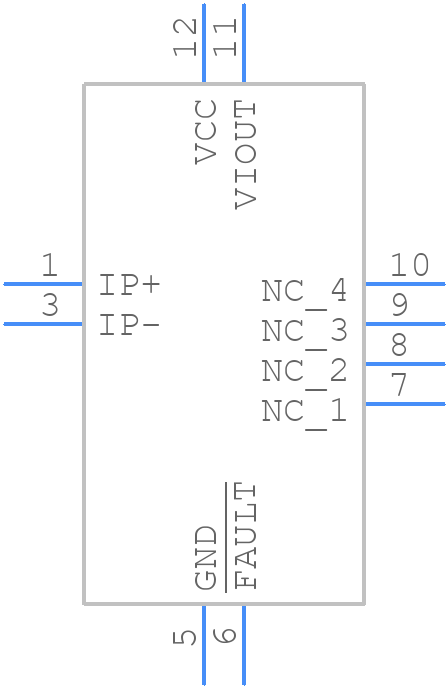

ACS71240KEXBLT-050U5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS71240KEXBLT-050U5 - Allegro Microsystems PCB footprint - Other - Other - ACS71240KEXBLT-050U5
click to zoom
3D Models
ACS71240KEXBLT-050U5 - Allegro Microsystems - 3D model - Other - ACS71240KEXBLT-050U5
click to zoom

ACS71240KEXBLT-050U5 Details

  • Manufacturer Part Number:

    ACS71240KEXBLT-050U5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3 mm

  • Body Height:

    0.675 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACS71240KEXBLT-050U5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS71240KEXBLT-050U5 is -40°C to 150°C.
  • The output voltage of the ACS71240KEXBLT-050U5 is a differential output, so it requires a differential amplifier or a instrumentation amplifier to condition the signal before it can be processed by an ADC or other circuitry.
  • The recommended PCB layout for the ACS71240KEXBLT-050U5 involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device's pins.
  • The ACS71240KEXBLT-050U5 does not require calibration, as it is a ratiometric device that provides an output voltage proportional to the input current. However, the device's output may need to be scaled and offset to match the specific application's requirements.
  • External magnetic fields can affect the accuracy of the ACS71240KEXBLT-050U5. To minimize the effect of external magnetic fields, it is recommended to use a mu-metal shield or a ferrite bead around the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS71240KEXBLT-050U5 Overview

Use the download button to access the ACS71240KEXBLT-050U5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
