ACS71240LLCBTR-020U5 - Allegro Microsystems

Description: Board Mount Current Sensors CURRENT SENSOR IC WITH COMMON MODE REJECTION AND OVERCURRENT FAULT

Download ACS71240LLCBTR-020U5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

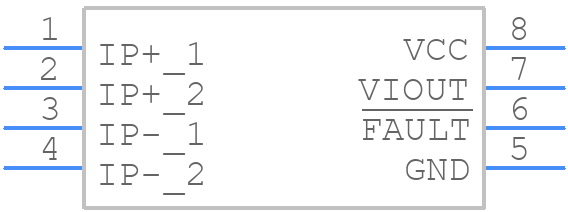

ACS71240LLCBTR-020U5 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ACS71240LLCBTR-020U5 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - ACS71240LLCBTR-020U5
click to zoom
3D Models
ACS71240LLCBTR-020U5 - Allegro Microsystems - 3D model - Small Outline Packages - ACS71240LLCBTR-020U5
click to zoom

ACS71240LLCBTR-020U5 Details

  • Manufacturer Part Number:

    ACS71240LLCBTR-020U5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.47 mm

  • Body Length or Diameter:

    4.9 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Surface Mount:

    YES

ACS71240LLCBTR-020U5 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ACS71240LLCBTR-020U5 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within the -20°C to 85°C range for optimal performance and reliability.
  • The output voltage of the ACS71240LLCBTR-020U5 is a differential voltage that varies with the input current. To handle this output, you'll need to use a differential amplifier or an analog-to-digital converter (ADC) that can accommodate the output voltage range of ±100 mV.
  • For optimal performance, it's recommended to follow a 4-layer PCB layout with a dedicated ground plane and to keep the input and output traces as short as possible. Additionally, ensure that the device is placed away from high-current carrying traces and noise sources.
  • The ACS71240LLCBTR-020U5 does not require calibration. It's a ratiometric device, meaning that the output voltage is proportional to the input current and the supply voltage. However, you may need to perform a zero-current calibration to account for any offset voltage.
  • The typical response time of the ACS71240LLCBTR-020U5 is 5 μs, which is the time it takes for the output voltage to settle within 1% of its final value after a step change in the input current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACS71240LLCBTR-020U5 Overview

Use the download button to access the ACS71240LLCBTR-020U5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACS71, or try a keyword search, such as Other Sensors/Transducers
